EFI Pro 32r+

White printing

• Enables printing on coloured and transparent media
• Opens up a myriad of creative possibilities
• Instant uptime of white printheads, thanks to the advanced circulation system in the ink tanks and along the entire ink system
• Multiple white print modes for various challenging applications:
  • White only
  • White as background
  • White on top of colour
  • White for backlit applications (C-W-C)
  • Five-layer printing (C-W-B-W-C) for blockout printing on clear
• Various additional three- and five-layer print modes

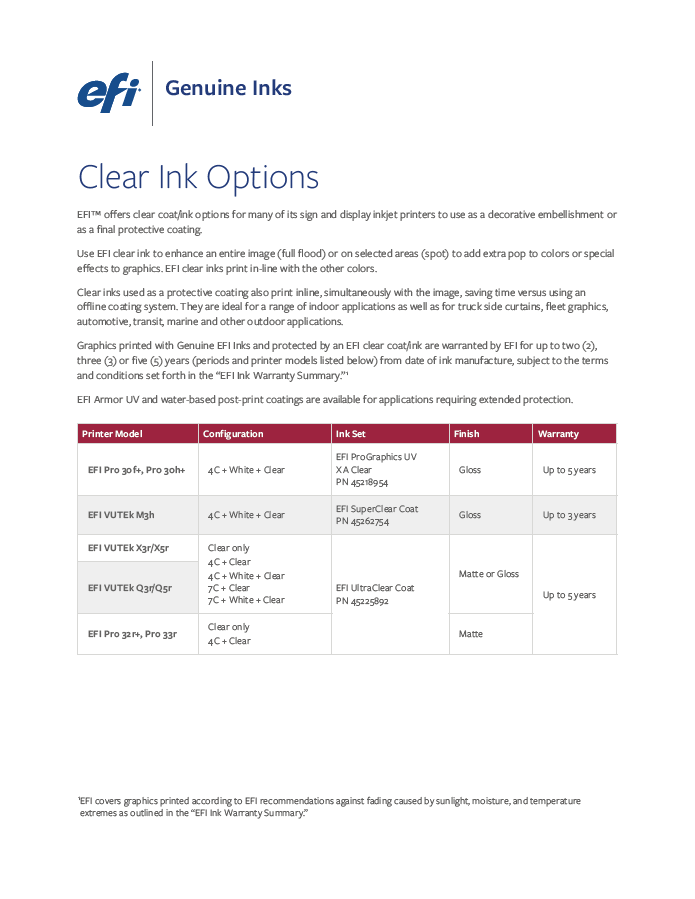

UltraClear Coat

• Printed inline, simultaneously with the image
• Printed on top of the colour layer
• Enhances the output, adding extra pop to the colours and offering beautiful creative possibilities
• Full flood or selective
• Glossy or matte finish with the same ink
• Provides three years of outdoor protection against:
  • Abrasion and scratching
  • Chemicals such as detergents, gasoline, and IPA
  • Weather damage
  • Air pollution
  • UV fading/yellowing
• Saves time versus separate offline coating systems

Automatic blockout printing – an automatic system that enables printing on both sides of opaque blockout media, resulting in excellent registration between sides.

• Accuracy of ≤ 5 mm over 10 linear metres
• Includes an optical sensor system, dedicated electronics, and software
• Simple, easy, and fully automatic system
• Eliminates the need for guesswork and manual manipulation
• Reduces required operator skill level
• Two available workflows, are to be defined before printing:
  • Head-to-head printing for short jobs where media is rolled back, flipped over, and reinstalled with side B up
  • Head-to-tail printing for longer jobs where printed media is collected on a front core, flipped over, and reinstalled with side B up

Automatic backlit printing – Automatic, patented system for perfectly aligned double-sided backlit printing on backlit media.

• Accuracy of ≤ 2 mm)over 10 linear metres
• Camera-guided software automatically corrects registration on x, y, and tilt axes
• Includes two cameras, LED strip along the printing table, and dedicated software
• Simple, easy, and fully automatic system
• Eliminates the need for guesswork and manual manipulation
• Reduces required operator skill level

Three-metre super duty winder – fully integrated unwinder or rewinder option for EFI VUTEk roll-to-roll 3m and 5m printers.

• Enables working with heavy 3 m media rolls up to 793 kg
• Enables continuous, uninterrupted work without stopping to change rolls
• Increases productivity in high volume runs due to less make-ready
• Equipped with dancer and external motor
• Material width: 320 cm
• Maximum media diameter: 70 cm
• Standard 3 in core; optional 6 in core

Dual roll split shaft for the EFI Pro 32r+ – consists of two individual motorised airshafts. Ensure precise and accurate media collection and improved media advance, resulting in excellent print quality.

• Enables printing simultaneously on two media rolls with different diameters
• Tension between the rolls is automatically adjusted according to the media diameter
• Media loading and unloading is flexible, simple, and quick
• Shafts can be inflated to fixate the media and avoid shifting side to side
• Supports media rolls up to 200 kg per shaft

Media edge guard (MEG) – used for media types with uneven or wavy edges that tend to curl or unravel, such as textiles and wallpaper.

• Designed to protect the print carriage and printheads from crashing into uneven media edges
• Eliminates ruined jobs and prevents media waste
• Can be attached quickly and easily with magnets anywhere along the printing table
• Use as many units as needed and multiple units for multi-roll printing

Wrinkle analyser – helps avoid printhead strikes caused by media wrinkles, saving time and money by preventing ruined jobs and enabling the use of lower-cost media.

• Media height detector identifies a media wrinkle before it reaches the printhead
• The front-end software prompts the user to raise the carriage just enough to avoid a head strike that may ruin the job and, then, to resume printing

Media saving wizard

• Designed to improve media stock management
• The user enters the length of the media each time a new or partially used roll is loaded into the software
• Before the media is removed from the printer, a label with the remaining media length is printed on the rim of the roll
• The software will alert the user before starting a job if the remaining media on the roll is insufficient for the job

Use the Fiery IQ suite of cloud applications to connect your people, processes, and print devices to make better data-driven decisions that improve your ROI, minimize cost, maximize profit, and boost your revenue.
